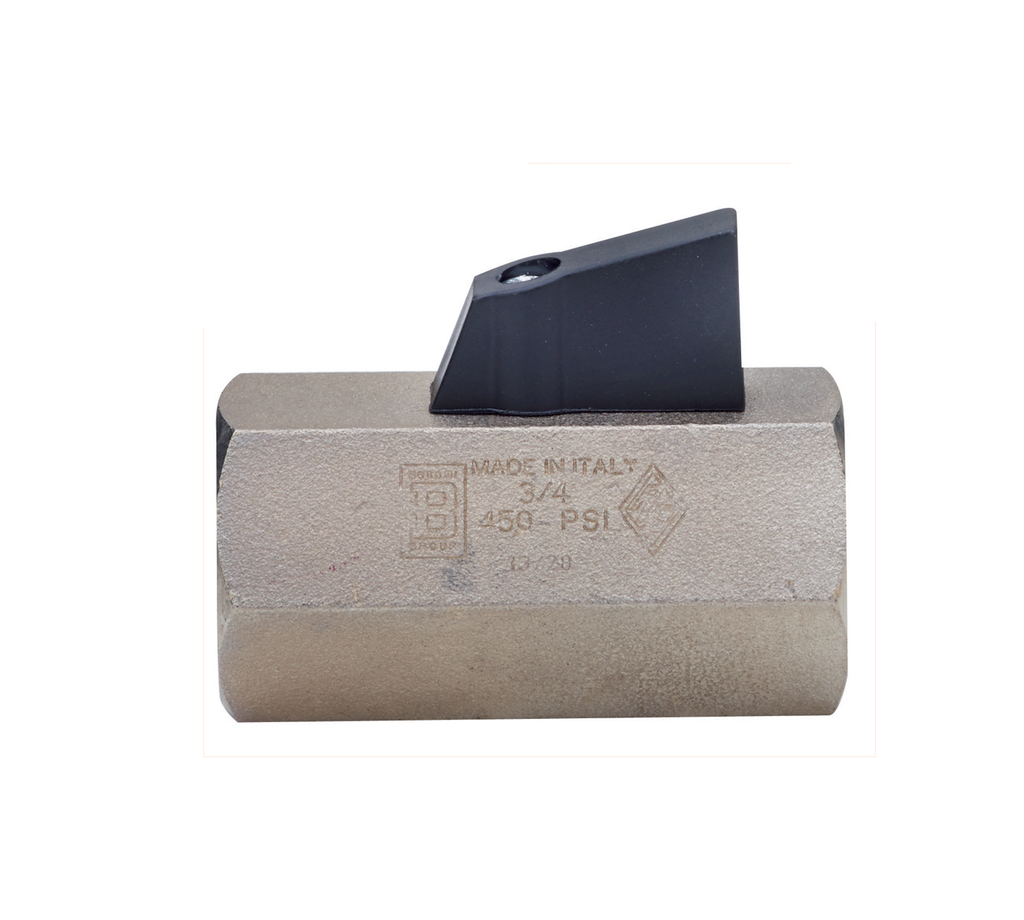

383N / 383M Mini-Sfer Series Mini Ball Valve, Nickel Plated Brass Ball, Standard Port
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
383N / 383M Mini-Sfer Series Nickel plated brass ball valve mini series, standard port.
Pressure rating 450 psi.
Temperature range -4°F to +330°F.
ANSI B1.20.1 connections.
Blow-out proof stem, chrome plated brass ball.
PTFE seats and FKM (Viton®) seal.
100% electronically tested in the open and closed position at 80 psi.
Not to be used for drinking water.
Valve to be used in fully open or fully closed position.
Model Details
383N: FNPT threaded - size 1/8” to 3/4”.
383M: MNPT x FNPT threaded - size 1/8” to 3/4”.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
383N / 383M Mini-Sfer Series Mini Ball Valve, Nickel Plated Brass Ball, Standard Port
Specifications
| Model | FNPT Threaded - size 1/8" to 3/4" or MNPT x FNPT Threaded - size 1/8" to 3/4" |
| Valve Size | 1/8" or 1/4" or 3/8" or 1/2" or 3/4" |
