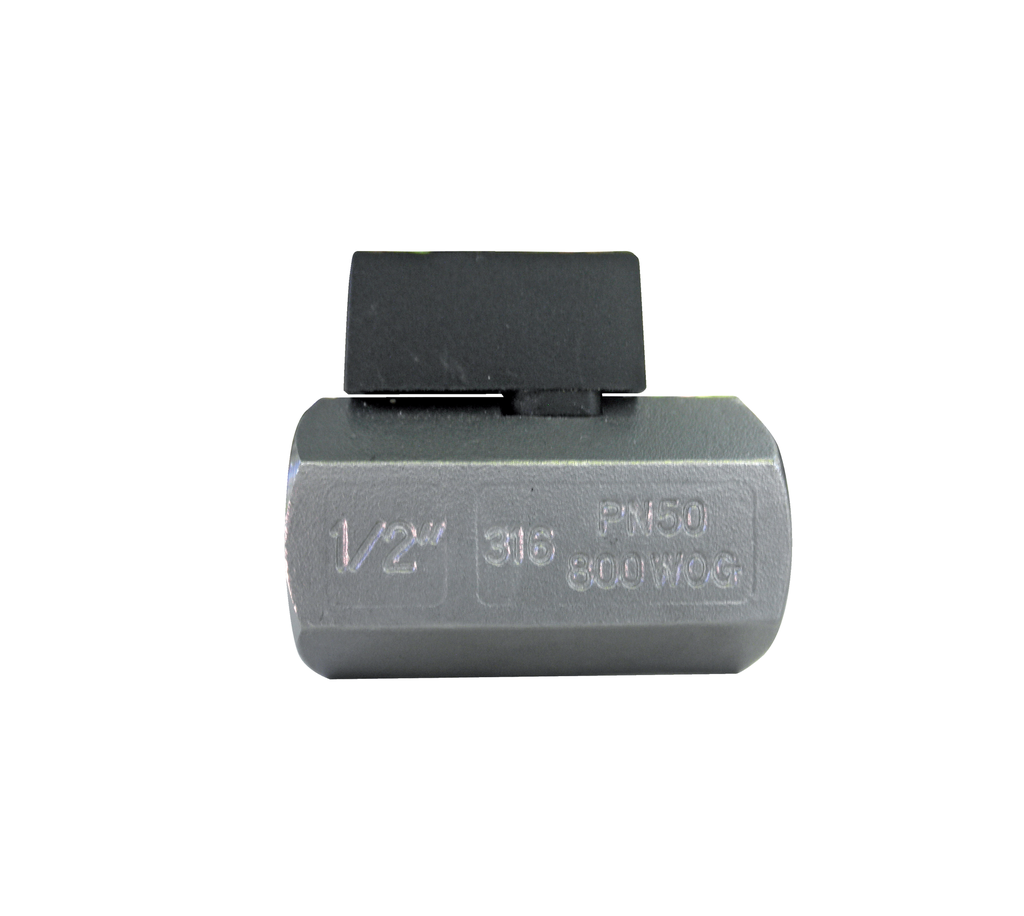

Representative photo. Please check item description for details.
380S North America Series Mini Stainless Steel Reduced Port, Threaded Ball Valve
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
380S stainless steel ball valve mini series, standard port.
Features
Pressure rating 800 psi WOG.
Temperature -4°F to +350°F.
Stem O-ring, seal PTFE.
PTFE seats.
Stainless steel body, ball and stem.
Wedge lever handle.
ANSI B1.20.1 connections.
Model Details
380S: FNPT threaded - size 1/4” to 1/2”.
380SM: MNPT x FNPT threaded - size 1/4” to 1/2”.
380S North America Series Mini Stainless Steel Reduced Port, Threaded Ball Valve
Specifications
| Model | [380S] FNPT Threaded or [380SM] MNPT x FNPT Threaded |
| Valve Size | 1/4" or 3/8" or 1/2" |
