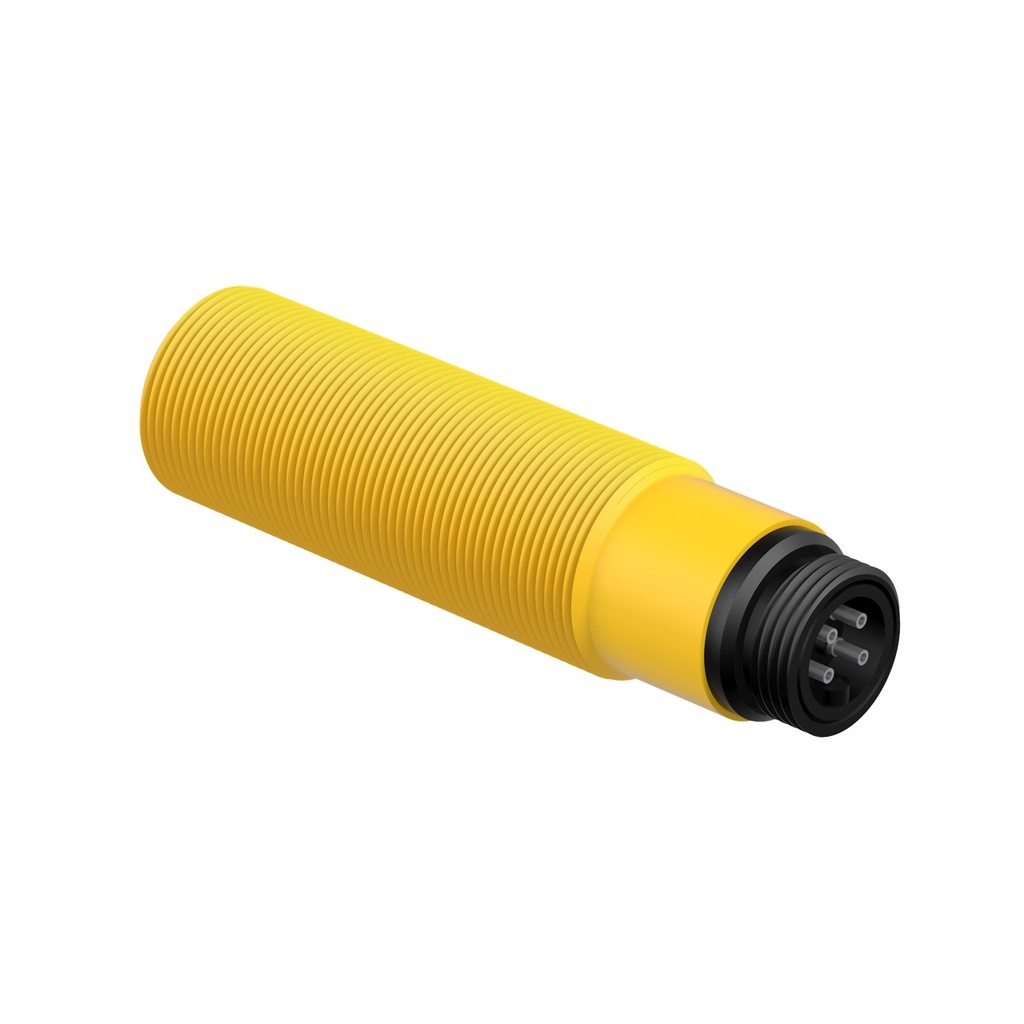

SM30 Series: Plastic Barrel Receiver/Emitter , SM30PRLEQD
Power:DC
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):1000
Sensing Beam:Infrared LED
Housing Style:Barrel
Max Sensing Distance:150000 mm
Sensing Mode (Detailed):Emitter/Receiver Pair
Sensing Mode (General):Opposed
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:7/8 in. (Mini)
Feature: Chemical Resistant:No
Opposed Mode Emitter/Receiver:Pair
Feature: Water Detection:No
Number of Pins:4
Output Response Time:10 ms
Operation:Light/Dark Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:Yes
Input/Output:Discrete
Barrel Diameter:30 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Integral QD
Country of Origin:US
NEMA / UL:NEMA 6P
Indicator Type:LED
Specifications
| Power | DC |
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 1000 |
| Sensing Beam | Infrared LED |
| Housing Style | Barrel |
| Max Sensing Distance | 150000 mm |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Sensing Mode (General) | Opposed |
| Max Relative Humidity | 90% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | 7/8 in. (Mini) |
| Feature: Chemical Resistant | No |
| Opposed Mode Emitter/Receiver | Pair |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 10 ms |
| Operation | Light/Dark Operate |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | Yes |
| Input/Output | Discrete |
| Barrel Diameter | 30 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Integral QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6P |
| Indicator Type | LED |
