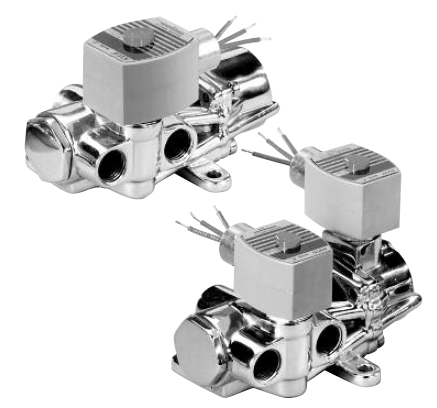

344 Series 4-Way, Single Solenoid, Piston Valve
Manufacturer: Asco LP
Mfg Product Code:
The ASCO Series 344, also known as 8344, 4-way solenoid valves
incorporate a piston-operated poppet design for high flow in a variety
of applications. Their sturdy, robust construction can be used with air
or water media. The 344 Series is suitable for use in analytical and
diagnostic instruments, biofuels, heating equipment, life science
production, and refining.
Features
- Sturdy, robust construction
- Piston-operated poppet design provides high flow
- For use with air or water
- Wide range of sizes and flow rates
- Single or dual solenoid constructions
- Dual solenoid can be shifted with a momentary signal and remain in position even if electrical power is lost
- Mountable in any position
344 Series 4-Way, Single Solenoid, Piston Valve
Valve Brand:Asco
Pipe Size:1/4in, 3/8in, 3/4in, 1in, 1/2in
Actuation:Solenoid - Pilot Operated
Body Material:Brass
Core and Plugnut:430F SS
Core Tube:305 SS
Disc Material:NBR
Disc-Holder:CA
Enclosure Type:Watertight, Explosionproof & Watertight
Flow Factor (Cv):0.80, 1.4, 5.2
Media:Air-Inert Gas, Water
Min Pressure (psi):10
Max Pressure (psi):250
Min Temperature °F:32
Max Temperature °F:125
Mounting Position:Any
Orifice:1/4in, 3/8in, 3/4in
Pilot Seat Cartridge:CA
Seal Material:NBR
Shading Coil:Copper
Shaft Gasket:PA
Springs:302 SS, 17-7PH SS
Specifications
8344 Series 4-Way Single Sol Piston Valve | |
---|---|
Product Specifications | [G356] Brass | 1" Pipe | 3/4" Orifice | 5.2 Cv Flow or [G070] Brass | 1/4" Pipe | 1/4" Orifice | .80 Cv Flow or [G000] Brass | 1/4" Pipe | 1/4" Orifice | .80 Cv Flow or [G072] Brass | 3/8" Pipe | 3/8" Orifice | 1.4 Cv Flow or [G001] Brass | 3/8" Pipe | 1/4" Orifice | .80 Cv Flow or [G074] Brass | 1/2" Pipe | 3/8" Orifice | 1.4 Cv Flow or [G027] Brass | 1/2" Pipe | 3/8" Orifice | 1.4 Cv Flow or [G076] Brass | 3/4" Pipe | 3/4" Orifice | 5.2 Cv Flow or [G029] Brass | 3/4" Pipe | 3/4" Orifice | 5.2 Cv Flow or [G078] Brass | 1" Pipe | 3/4" Orifice | 5.2 Cv Flow or [G031] Brass | 1" Pipe | 3/4" Orifice | 5.2 Cv Flow |
Solenoid Option | None or [EF] Explosionproof or [EV] Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate or [GP] Panel Mount Type 1 General Purpose Solenoid or [J] Junction Box or [JB] Factory Assembled Junction Box or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit or [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit or [JP] Panel Mount Junction Box or [OF] Open Frame Spade and Screw Terminal Solenoids or [OP] Panel Mount Spade, Screw and DIN Terminal Solenoids |
Coil Options | None or [HB] Class H - Intermediate Power or [HT] Class H - High Temperature or [KB] Class H - Intermediate Power - Screw Terminals or [KF] Class F - High Temperature - Screw Terminals or [KH] Class H - High Temperature - Screw Terminals or [KP] Class F - Intermediate Power - Screw Terminals or [SC] Class F - High Temperature - DIN Connection or [SD] Class F - Intermediate Power - DIN Connection or [SF] Class F - High Temperature - Spade Terminals or [SP] Class F - Intermediate Power - Spade Terminals or [SS] Class H - Intermediate Power - Spade Terminals or [ST] Class H - High Temperature - Spade Terminals or [SU] Class H - High Temperature - DIN Connection or [SV] Class H - Intermediate Power - DIN Connection or [ZT] Class F - High Temperature - Mini 3 Pin Connector |
Optional Lead Type | Standard or [L] Continuous Leads |
Lead Length | Standard or 18" [D] or 72" [K] |
Optional Seat/Disc/Etc. Material | None or [E] EPDM (Ethylene Propylene) or [Q] Long-Life Construction or [V] FKM |
Optional Manual Operator | Without or [MO] Manual Operator |
Voltage | AC24/60 or AC110/50 or AC120/60 or AC120/60,110/50 or AC220/50 or AC240/60 or AC240/60,220/50 or DC6/DC or DC12/DC or DC24/DC or DC120/DC or DC240/DC |
Valve Features | |
---|---|
Valve Brand | Asco |
Pipe Size | 1/4in, 3/8in, 3/4in, 1in, 1/2in |
Actuation | Solenoid - Pilot Operated |
Body Material | Brass |
Core and Plugnut | 430F SS |
Core Tube | 305 SS |
Disc Material | NBR |
Disc-Holder | CA |
Enclosure Type | Watertight, Explosionproof & Watertight |
Flow Factor (Cv) | 0.80, 1.4, 5.2 |
Media | Air-Inert Gas, Water |
Min Pressure (psi) | 10 |
Max Pressure (psi) | 250 |
Min Temperature °F | 32 |
Max Temperature °F | 125 |
Mounting Position | Any |
Orifice | 1/4in, 3/8in, 3/4in |
Pilot Seat Cartridge | CA |
Seal Material | NBR |
Shading Coil | Copper |
Shaft Gasket | PA |
Springs | 302 SS, 17-7PH SS |
