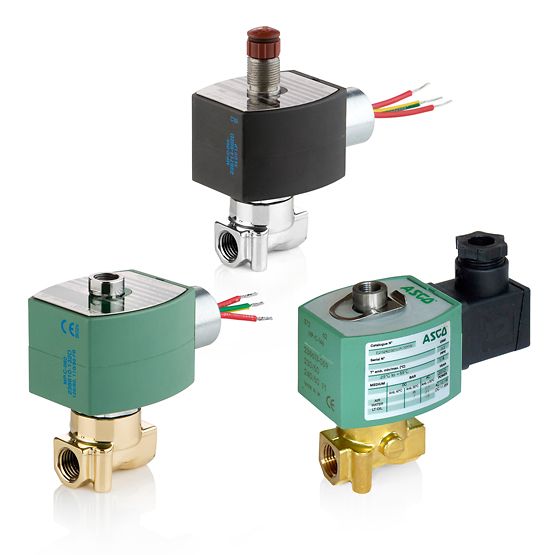

314 Series NC Direct-Acting Solenoid Valve
Manufacturer: Asco LP
Mfg Product Code:
The ASCO Series 314, also known as 8314, is a line of direct-acting general service solenoid valves which can be used as moderate flow pilots for smaller control valves and actuators. With only a spring and two moving parts, the valve is ideal for basic three-way piloting operation It is suitable for analytical and diagnostic equipment, automotive, bottling, dust collector system, and life science applications.
314 Series NC Direct-Acting Solenoid Valve
Valve Brand:Asco
Pipe Size:1/4in
Actuation:Solenoid - Direct Acting
Body Material:Brass, Cast 304 SS
Core and Plugnut:430F SS
Core Guide:POM
Core Springs:302 SS
Core Tube:305 SS
Disc Material:Nitrile (Upper Disk - FKM)
Enclosure Type:Watertight, Explosionproof & Watertight
Flow Factor (Cv):0.15, 0.25, 0.20
Media:Air-Inert Gas, Water, Light Oil
Max Pressure (psi):205
Min Temperature °F:-13
Max Temperature °F:131
Orifice:3/32in, 1/8in
Seal Material:Nitrile
Shading Coil:Copper, Silver
Valve Function:3-Way Normally Closed
Specifications
8314 Series NC Gen Svc Sol Valve | |
---|---|
Product Specifications | [H035] Brass | 1/4" Pipe | 3/32" Orifice | 0.15 Flow or [H036] Brass | 1/4" Pipe | 1/8" Orifice | 0.25 Flow or [H121] Stainless Steel | 1/4" Pipe | 3/32" Orifice | 0.15 Flow |
Solenoid Option | None or [EF] Explosionproof or [EV] Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate or [GP] Panel Mount Type 1 General Purpose Solenoid or [J] Junction Box or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit |
Coil Options | None or [HT] Class H - High Temperature or [KF] Class F - High Temperature - Screw Terminals or [KH] Class H - High Temperature - Screw Terminals or [SC] Class F - High Temperature - DIN Connection or [ZT] Class F - High Temperature - Mini 3 Pin Connector |
Optional Lead Type | Standard or [L] Continuous Leads |
Lead Length | Standard or 18" [D] or 72" [K] |
Optional Seat/Disc/Etc. Material | None or [N] Oxygen or [V] FKM |
Optional Mounting Bracket | Without or [MB] Mounting Bracket |
Optional Manual Operator | Without or [MS] Screw Type Manual Operator |
Voltage | AC24/60 or AC110/50 or AC120/60 or AC120/60,110/50 or AC220/50 or AC240/60 or AC240/60,220/50 or DC6/DC or DC12/DC or DC24/DC or DC120/DC or DC240/DC |
Valve Features | |
---|---|
Valve Brand | Asco |
Pipe Size | 1/4in |
Actuation | Solenoid - Direct Acting |
Body Material | Brass, Cast 304 SS |
Core and Plugnut | 430F SS |
Core Guide | POM |
Core Springs | 302 SS |
Core Tube | 305 SS |
Disc Material | Nitrile (Upper Disk - FKM) |
Enclosure Type | Watertight, Explosionproof & Watertight |
Flow Factor (Cv) | 0.15, 0.25, 0.20 |
Media | Air-Inert Gas, Water, Light Oil |
Max Pressure (psi) | 205 |
Min Temperature °F | -13 |
Max Temperature °F | 131 |
Orifice | 3/32in, 1/8in |
Seal Material | Nitrile |
Shading Coil | Copper, Silver |
Valve Function | 3-Way Normally Closed |
