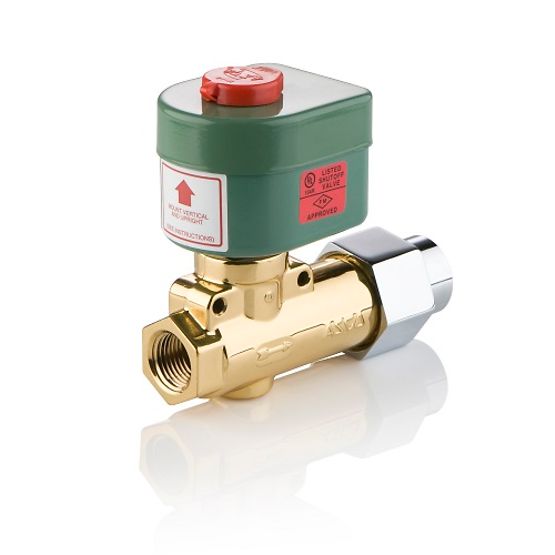

266 Series NO Combustion Valve w/o Bypass
Manufacturer: Asco LP
Mfg Product Code:
The ASCO Series 266-S, also known as 8266, is a line of 2-way or 3-way oil shut off solenoid valves designed specifically for the on-off control of fuel oil in commercial and industrial burners. The valves are suitable for light and heavy fuel oils.
Features
- General-purpose brass enclosure for a variety of applications
- 2-way normally closed or normally open operation
- Zero-differential lever actuation
266 Series NO Combustion Valve w/o Bypass
Product Specifications:[D169] 1/2" Pipe | 1/4" Orifice | 1.20 Flow
Lead Length:18" [D]
Valve Brand:Asco
Pipe Size:3/8in, 1/2in
Actuation:Solenoid - Direct Acting
Body Material:Brass
Core and Plugnut:430F SS
Disc Material:FKM, SS
Enclosure Type:Redhat - Type I, Redhat - Rainproof
Flow Factor (Cv):1.2
Media:Fuel Oil
Min Pressure (psi):0
Max Pressure (psi):90
Max Temperature °F:104
Mounting Position:Vertical & Upright
Orifice:1/8in, 1/4in, 3/16in, 3/64in, 13/64in
Seal Material:FKM, SS
Seats / Seat Insert:FKM
Shading Coil:Copper
Springs:302 SS
Valve Opening Time:<1s
Valve Closing Time:<1s
Valve Function:2-Way Normally Open
Alternative Products
Specifications
8266 Series NO Combustion Valve w/o Bypass | |
---|---|
Optional RedHat 3R - Rainproof | Without or [R] RedHat 3R - Rainproof |
Solenoid Option | None or [JB] Factory Assembled Junction Box or [WP] Cable Gland w/Integral Strain Relief |
Coil Options | None or [HT] Class H - High Temperature or [SC] Class F - High Temperature - DIN Connection |
Seating Material | [V] FKM or [L] Stainless Steel |
Voltage | AC24/60 or AC110/50 or AC120/60 or AC120/60,110/50 or AC220/50 or AC240/60 or AC240/60,220/50 or DC6/DC or DC12/DC or DC24/DC or DC120/DC or DC240/DC |
Product Specifications | [D169] 1/2" Pipe | 1/4" Orifice | 1.20 Flow |
Lead Length | 18" [D] |
Valve Features | |
---|---|
Valve Brand | Asco |
Pipe Size | 3/8in, 1/2in |
Actuation | Solenoid - Direct Acting |
Body Material | Brass |
Core and Plugnut | 430F SS |
Disc Material | FKM, SS |
Enclosure Type | Redhat - Type I, Redhat - Rainproof |
Flow Factor (Cv) | 1.2 |
Media | Fuel Oil |
Min Pressure (psi) | 0 |
Max Pressure (psi) | 90 |
Max Temperature °F | 104 |
Mounting Position | Vertical & Upright |
Orifice | 1/8in, 1/4in, 3/16in, 3/64in, 13/64in |
Seal Material | FKM, SS |
Seats / Seat Insert | FKM |
Shading Coil | Copper |
Springs | 302 SS |
Valve Opening Time | <1s |
Valve Closing Time | <1s |
Valve Function | 2-Way Normally Open |
