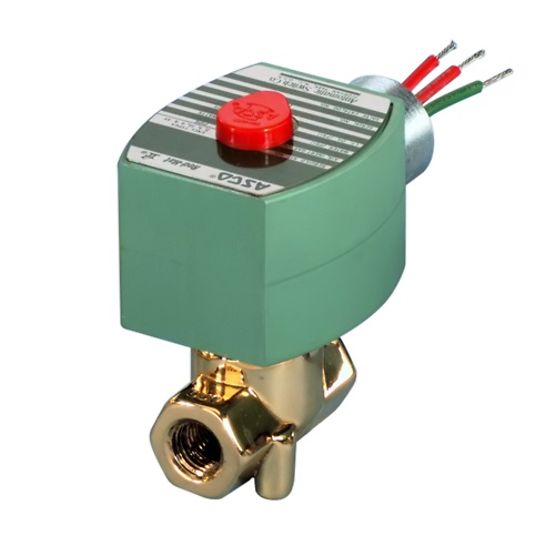

263 Series NC Hot Water & Steam Valve
Manufacturer: Asco LP
Mfg Product Code:
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Hot water service to 210 psi differential @ 210°F; Steam sevice to 125 psi differential @ 353°F
- Specify these valves for the high-temperature applications found in laundries, molding, steam atomization, sterilizers, autoclaves, and many others
- Direct acting miniature valves
263 Series NC Hot Water & Steam Valve
Valve Brand:Asco
Pipe Size:1/4in, 3/8in
Actuation:Solenoid - Direct Acting
Body Material:Brass
Core and Plugnut:430F SS
Core Tube:305 SS
Disc Material:EPDM, PTFE
Enclosure Type:Redhat II - Explosionproof & Watertight, Redhat II - Watertight, Redhat - Type I, Redhat - Explosionproof & Raintight
Flow Factor (Cv):0.35, 0.52, 0.88, 1.0
Media:Hot Water & Steam
Min Pressure (psi):0
Max Pressure (psi):210
Min Temperature °F:32
Max Temperature °F:131
Mounting Position:Any
Orifice:1/8in, 5/32in, 7/32in, 9/32in
Seal Material:EPDM, PTFE
Seats / Seat Insert:SS
Shading Coil:Copper, Silver
Springs:302 SS
Valve Function:2-Way Normally Closed
Specifications
8263 NC Hot Water/Steam Valve | |
---|---|
Product Specifications | [H053] Brass | 1/4" Pipe | 1/8" Orifice | 0.35 Cv Flow or [H059] Brass | 1/4" Pipe | 1/8" Orifice | 0.35 Cv Flow or [H300] Brass | 1/4" Pipe | 5/32" Orifice | 0.52 Cv Flow or [H301] Brass | 1/4" Pipe | 7/32" Orifice | 0.73 Cv Flow or [H303] Brass | 1/4" Pipe | 9/32" Orifice | 0.88 Cv Flow or [H304] Brass | 3/8" Pipe | 1/8" Orifice | 0.35 Cv Flow or [H305] Brass | 3/8" Pipe | 5/32" Orifice | 0.52 Cv Flow or [H306] Brass | 3/8" Pipe | 7/32" Orifice | 0.85 Cv Flow or [H308] Brass | 3/8" Pipe | 9/32" Orifice | 1 Cv Flow or [H318] Stainless Steel | 3/8" Pipe | 1/8" Orifice | 0.35 Cv Flow or [H319] Stainless Steel | 3/8" Pipe | 5/32" Orifice | 0.52 Cv Flow or [H320] Stainless Steel | 3/8" Pipe | 7/32" Orifice | 0.85 Cv Flow or [H321] Stainless Steel | 3/8" Pipe | 9/32" Orifice | 1 Cv Flow |
Solenoid Option | None or [EF] Explosionproof or [EF] Explosionproof (H303, H305, H035) or [GP] Panel Mount Type 1 General Purpose Solenoid or [J] Junction Box or [JB] Factory Assembled Junction Box or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H300, H308) or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H303, H305) or [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (H300, H308) or [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (H303, H305) or [OF] Open Frame Spade and Screw Terminal Solenoids |
Coil Options | None or [KB] Class H - Intermediate Power - Screw Terminals or [KH] Class H - High Temperature - Screw Terminals or [SS] Class H - Intermediate Power - Spade Terminals or [ST] Class H - High Temperature - Spade Terminals or [ST] Class H - High Temperature - Spade Terminals (H053, H059) or [SU] Class H - High Temperature - DIN Connection or [SU] Class H - High Temperature - DIN Connection (H305) or [SV] Class H - Intermediate Power - DIN Connection |
Optional Lead Type | Standard or [L] Continuous Leads |
Lead Length | Standard or 18" [D] or 72" [K] |
Optional Seat/Disc/Etc. Material | None or [E] EPDM (Ethylene Propylene) |
Voltage | AC120/60 or AC120/60,110/50 or AC220/50 or AC24/60 or AC240/60 or AC240/60,220/50 or AC480/60 or AC480/60,440/50 or AC110/50 |
Valve Features | |
---|---|
Valve Brand | Asco |
Pipe Size | 1/4in, 3/8in |
Actuation | Solenoid - Direct Acting |
Body Material | Brass |
Core and Plugnut | 430F SS |
Core Tube | 305 SS |
Disc Material | EPDM, PTFE |
Enclosure Type | Redhat II - Explosionproof & Watertight, Redhat II - Watertight, Redhat - Type I, Redhat - Explosionproof & Raintight |
Flow Factor (Cv) | 0.35, 0.52, 0.88, 1.0 |
Media | Hot Water & Steam |
Min Pressure (psi) | 0 |
Max Pressure (psi) | 210 |
Min Temperature °F | 32 |
Max Temperature °F | 131 |
Mounting Position | Any |
Orifice | 1/8in, 5/32in, 7/32in, 9/32in |
Seal Material | EPDM, PTFE |
Seats / Seat Insert | SS |
Shading Coil | Copper, Silver |
Springs | 302 SS |
Valve Function | 2-Way Normally Closed |
