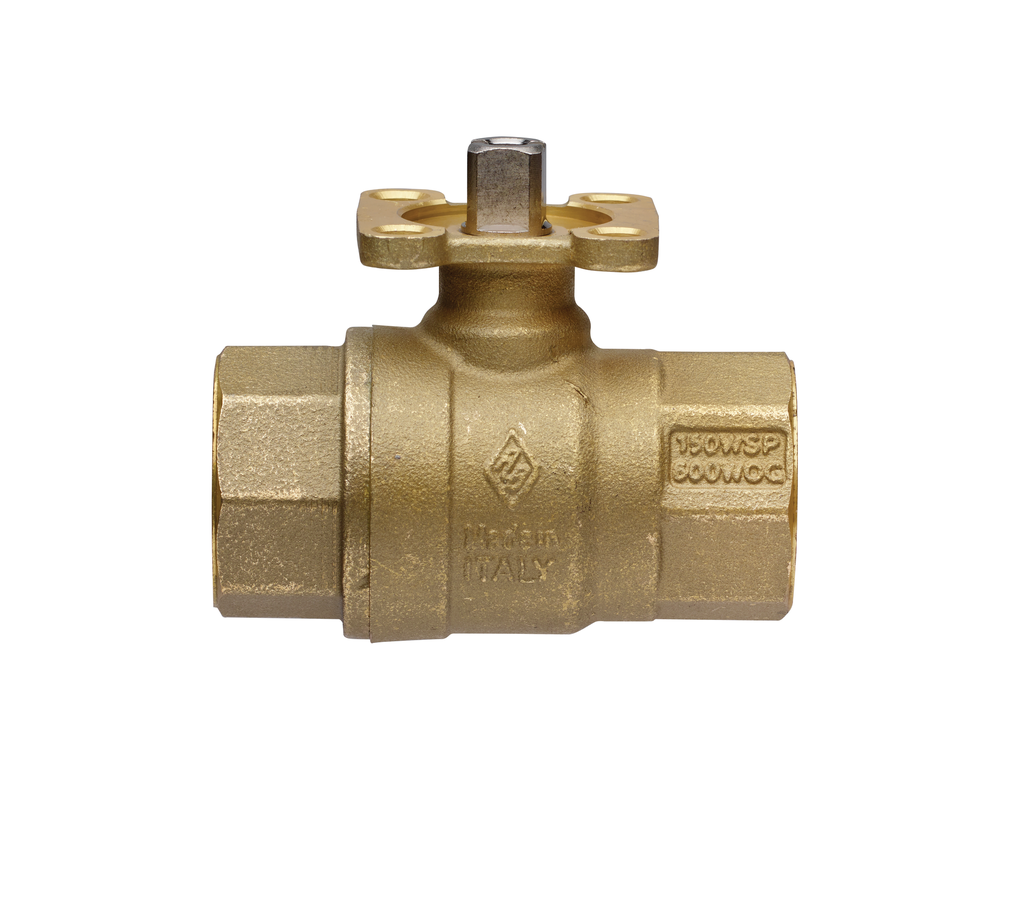

Representative photo. Please check item description for details.
250NLF / 253NLF, Lead Free Series, Full Port, Brass Ball Valve FNPT Threaded w/ ISO 5211 Pad for Actuators
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
250N LF Lead Free Series brass ball valve, FNPT threaded, with ISO 5211 pad for actuator, full port.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to 366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, SLT. coated LF brass ball and and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
100% electronically tested in the open and closed position at 80 psi.
Valve to be used in fully open or fully closed position.
Model Details
250N LF: size 1/4” to 4”.
253N LF: WITH STAINLESS STEEL BALL AND STEM - size 1/4” to 4”.
250NLF / 253NLF, Lead Free Series, Full Port, Brass Ball Valve FNPT Threaded w/ ISO 5211 Pad for Actuators
Specifications
Model | [250N LF] Standards or [253N LF] With Stainless Steel Ball/Stem |
Valve Size | 1/4" or 3/8" or 1/2" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" |
