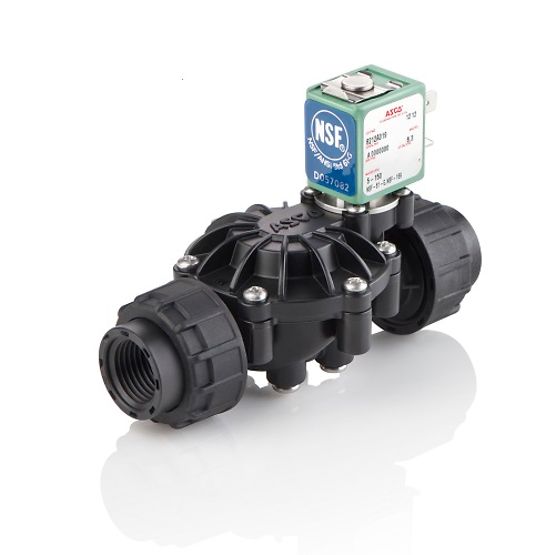

212 Series NO Lead-Free Drinking Water Conditioning & Purification Valve
Manufacturer: Asco LP
Mfg Product Code:
ASCO has perfected composite valve technology with the Series 212, also known as 8212, plastic solenoid valves. The robust, easy-to-install valves are designed specifically for water purification and conditioning systems in commercial and industrial applications. With the highest pressure and temperature ratings on the market -- up to 150 psi and 150°F - the 212 Series solves the breakdown and reliability problems found in other types of composite valves. Its lightweight engineered plastic body has been built and tested to achieve up to 1 million operating cycles. The 212 Series comes with ASCO's new FasN universal connection system - the world's fastest, most secure valve connection technology.
Features
- Ideal for reverse-osmosis and misting systems for drinking water, restaurant equipment, and grocery store applications
- NSF 61 Annex G (drinking water), NSF 169 (special purpose food equipment and devices), NSF 372 (lead-free), and NSF Standard 42 certifications
- FasN universal connection system quickly connects to any type of fitting - NPT, quick-connect with Turn & Lock - for the most rapid assembly, lowest cost, and greatest design flexibility
- Available in 1/2-inch, 3/4-inch, and 1-inch pipe sizes
212 Series NO Lead-Free Drinking Water Conditioning & Purification Valve
Coil Electrical Connection:[S0] DIN Type Coil w/o Connector
Voltage:[F1] DC24/DC
Valve Brand:Asco
Pipe Size:1/2in, 3/4in, 1in
Actuation:Solenoid - Pilot Operated
Body Material:PPE, Composite
Bonnet:SS
Core and Plugnut:SS
Core Tube:SS
Disc Material:EPDM, TPE
Flow Factor (Cv):4.5, 7.0, 13.0
Min Pressure (psi):5
Max Pressure (psi):150
Min Temperature °F:32
Max Temperature °F:120
Mounting Position:Any
Seal Material:EPDM, TPE
Shading Coil:Copper
Springs:SS
Valve Function:2-Way Normally Open
Specifications
8212 Drinking Water Valve NO Lead Free | |
---|---|
Product Specifications | [A520] 1/2" Pipe | 3/4" Orifice | 4.5 Cv Flow | NPT thread / NPT thread or [A524] 1/2" Pipe | 3/4" Orifice | 4.5 Cv Flow | NPT thread / Turn & Lock or [A538] 3/4" Pipe | 3/4" Orifice | 7 Cv Flow | NPT thread / NPT thread or [A542] 3/4" Pipe | 3/4" Orifice | 7 Cv Flow | NPT thread / Turn & Lock |
Pressure Vessel Options | [100] No Options or [200] Mounting Bracket (Stainless Steel) (A520, A538) or [200] Mounting Bracket (Stainless Steel) (A524, A542) |
Coil Electrical Connection | [S0] DIN Type Coil w/o Connector |
Voltage | [F1] DC24/DC |
Valve Features | |
---|---|
Valve Brand | Asco |
Pipe Size | 1/2in, 3/4in, 1in |
Actuation | Solenoid - Pilot Operated |
Body Material | PPE, Composite |
Bonnet | SS |
Core and Plugnut | SS |
Core Tube | SS |
Disc Material | EPDM, TPE |
Flow Factor (Cv) | 4.5, 7.0, 13.0 |
Min Pressure (psi) | 5 |
Max Pressure (psi) | 150 |
Min Temperature °F | 32 |
Max Temperature °F | 120 |
Mounting Position | Any |
Seal Material | EPDM, TPE |
Shading Coil | Copper |
Springs | SS |
Valve Function | 2-Way Normally Open |
