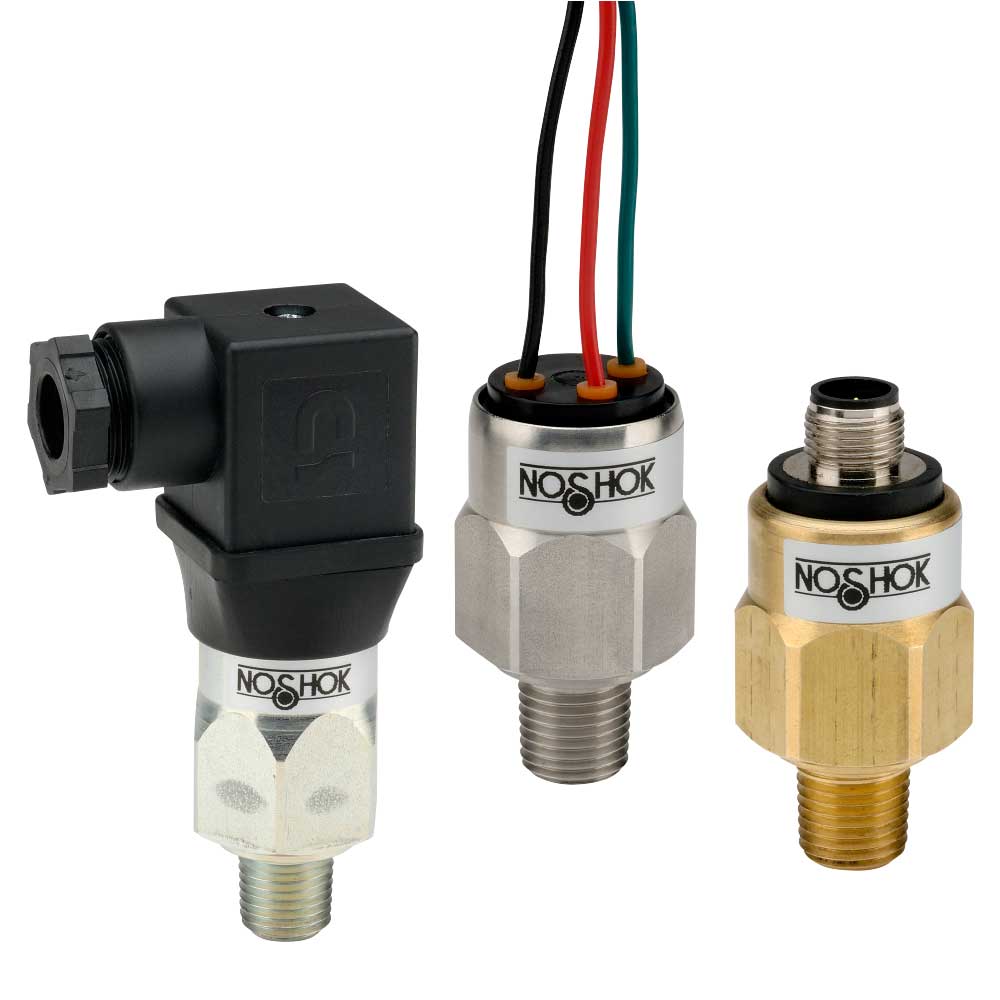

200 Series Mechanical Compact Low Pressure Switch, 15 to 75 psig, 1/4" NPT-Male, SPDT, Spade Terminals (1/4 x 1/32)
Manufacturer: Noshok Inc
Mfg Product Code: 200L-3-2-15/75-4
Weight: 0.2 lb(s)
200L Series Snap Action, Brass Wet Mat, NBR Diaph, 1 SPDT, (NO/NC), 1/4" NPT, 15 to 75 psig (350 psig), Spade Terminals (1/4" x 1/32") Mechanical Compact SPDT Press Switch
- Switch adjustment ranges from vacuum through 6,00 psig depending on model
- 200V & 200L: Standard Brass with NBR Diaphragm wetted parts, 200H: Standard Zinc-nickel with NBR Diaphragm wetted parts
- SPST or SPDT snap-action switch with solid Silver contacts
- CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)
- RoHS compliant
Applications:
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
200 Series Mechanical Compact Low Pressure Switch, 15 to 75 psig, 1/4" NPT-Male, SPDT, Spade Terminals (1/4 x 1/32)
200L Series Snap Action, Brass Wet Mat, NBR Diaph, 1 SPDT, (NO/NC), 1/4" NPT, 15 to 75 psig (350 psig), Spade Terminals (1/4" x 1/32") Mechanical Compact SPDT Press Switch
Brand_Name:Noshok
Measurement Maximum:75
Max Operating Pressure:75 psid
Max Operating Temperature:176 °F
Process Connection Size:1/4"
Case Material:Zinc-Nickel Plated Steel
Wetted Material:Brass, NBR Diaphragm
Measurement Minimum:15
Ingress Protection:IP00
Switch Function:SPDT
Electrical Connector Type:Spade Terminals
Specifications
| Brand_Name | Noshok |
| Measurement Maximum | 75 |
| Max Operating Pressure | 75 psid |
| Max Operating Temperature | 176 °F |
| Process Connection Size | 1/4" |
| Case Material | Zinc-Nickel Plated Steel |
| Wetted Material | Brass, NBR Diaphragm |
| Measurement Minimum | 15 |
| Ingress Protection | IP00 |
| Switch Function | SPDT |
| Electrical Connector Type | Spade Terminals |
