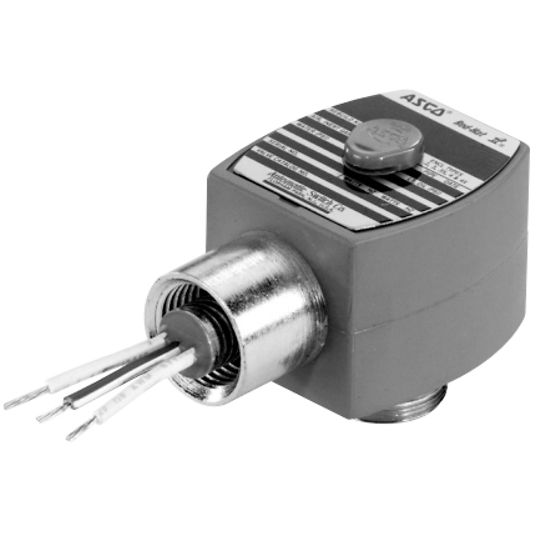

Representative photo. Please check item description for details.
200 Series Solenoid Operator (Nema Type, CSA)
Manufacturer: Asco LP
Mfg Product Code:
On Hand: 0
The ASCO Series 200 is the same RedHat II molded epoxy solenoid operator used on general purpose ASCO valves. It is available in four standard wattages, AC or DC.
Features
- The standard operator model is a RedHat II watertight, types 1, 2, 3, 3S, 4, and 4X.
- Optional features include RedHat II explosion-proof and watertight, types 3, 3S, 4, 4X, 6, 6P, 7, and 9
- Nominal ambient temperature range is 32° F to 125° F (AC); 32° F to 104° F (DC)
- Mountable in any position for flexible installation
200 Series Solenoid Operator (Nema Type, CSA)
Product Specifications:[G001] 6.1 Watt | F Class
Valve Brand:Asco
Actuation:Solenoid
Core and Plugnut:430F SS
Core Tube:305 SS
Disc Material:NBR, PA
Enclosure Type:Redhat II - Watertight, Redhat II - Explosionproof & Watertight
Media:Air-Inert Gas, Light Oil, Water
Seal Material:NBR
Shading Coil:Copper
Springs:302 SS
Valve Function:2-Way Normally Closed
Specifications
200 Series Solenoid Operator | |
---|---|
Solenoid Option | None or [EF] Explosionproof or [J] Junction Box or [JB] Factory Assembled Junction Box or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit or [OF] Open Frame Spade and Screw Terminal Solenoids or [OP] Panel Mount Spade, Screw and DIN Terminal Solenoids |
Coil Options | None or [HT] Class H - High Temperature or [KF] Class F - High Temperature - Screw Terminals or [KH] Class H - High Temperature - Screw Terminals or [SC] Class F - High Temperature - DIN Connection or [SF] Class F - High Temperature - Spade Terminals or [ST] Class H - High Temperature - Spade Terminals or [SU] Class H - High Temperature - DIN Connection |
Optional Lead Type | Standard or [L] Continuous Leads |
Lead Length | Standard or 18" [D] or 72" [K] |
Optional Seat/Disc/Etc. Material | None or [V] FKM |
Voltage | AC24/60 or AC110/50 or AC120/60 or AC120/60,110/50 or AC220/50 or AC240/60 or AC240/60,220/50 or DC6/DC or DC12/DC or DC24/DC or DC120/DC or DC240/DC |
Product Specifications | [G001] 6.1 Watt | F Class |
Valve Features | |
---|---|
Valve Brand | Asco |
Actuation | Solenoid |
Core and Plugnut | 430F SS |
Core Tube | 305 SS |
Disc Material | NBR, PA |
Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight |
Media | Air-Inert Gas, Light Oil, Water |
Seal Material | NBR |
Shading Coil | Copper |
Springs | 302 SS |
Valve Function | 2-Way Normally Closed |
