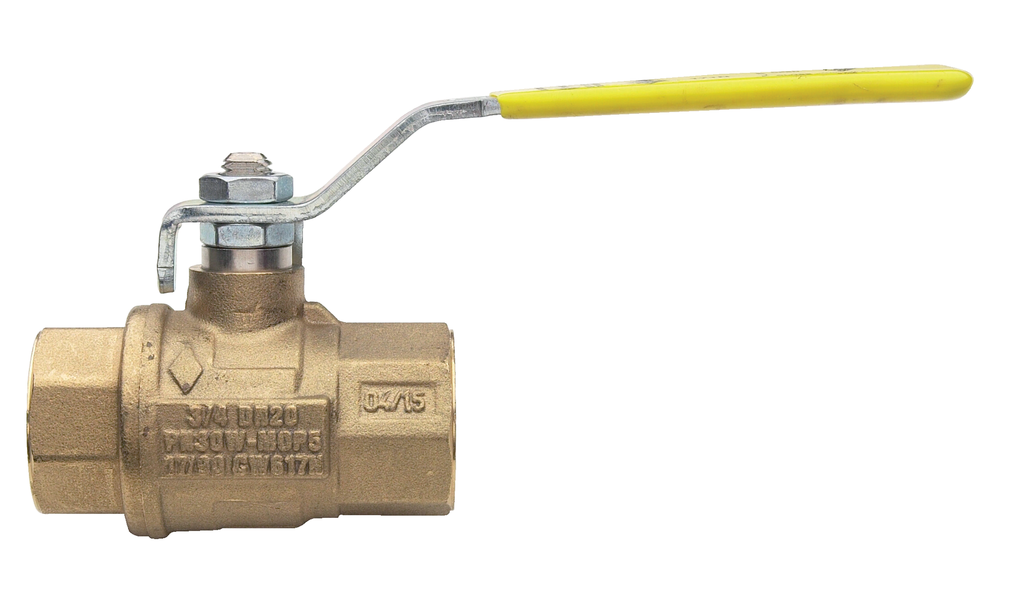

171N / 172N / 171NCR / 171S Euro-Sfer Series Commercial Full Port Brass Ball Valve FNPT Threaded
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
171N / 172N / 171S Euro-Sfer Series Commercial style brass ball valve, FNPT threaded, full port.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to +366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, chrome plated brass ball.
PTFE seats, seals, and thrust washer.
Adjustable stem packing.
100% electronically tested in the open and closed position at 80 psi.
Not to be used for drinking water.
Valve to be used in fully open or fully closed position.
Meets the design criteria of MSS SP-110
Model Summary
171N: LEVER HANDLE - size 1/4” to 4”.
172N: T HANDLE - size 1/4” to 1”.
171S: BALL AND STEM IN STAINLESS STEEL AISI 316 - size 1/4” to 4”.
171NCR: CHROME PLATED - size 1/4” to 4”.
171N / 172N / 171NCR / 171S Euro-Sfer Series Commercial Full Port Brass Ball Valve FNPT Threaded
Specifications
| Style | [171N] Lever Handle, Brass Ball or [172N] T-Handle, Brass Ball or [171NCR] Lever Handle, Chrome-Plated Brass Ball or [171S] T-Handle, SS Ball & Stem AISI 316 |
| Valve Size | 1/4" or 3/8" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" or 1/4"⠀ or 3/8"⠀ or 1/2"⠀ or 3/4"⠀ or 1"⠀ or 1-1/4"⠀ or 1-1/2"⠀ or 2"⠀ or 2-1/2"⠀ or 3"⠀ or 4"⠀ or 1/4" ⠀ or 3/8" ⠀ or 1/2" ⠀ or 3/4" ⠀ or 1" ⠀ or 1-1/4" ⠀ or 1-1/2" ⠀ or 2" ⠀ or 2-1/2" ⠀ or 3" ⠀ or 4" ⠀ |
