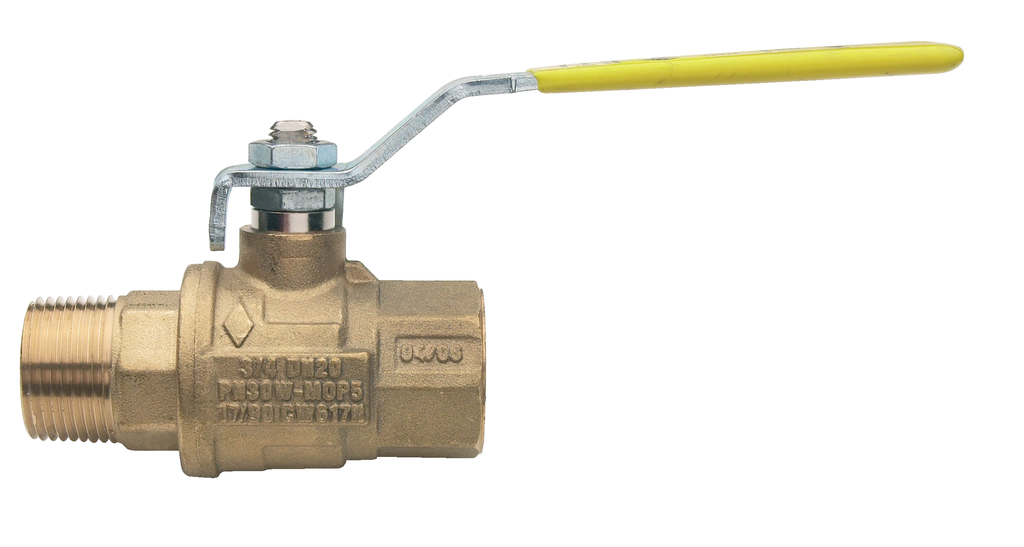

171M Euro-Sfer Series Commercial Full Port Brass Ball Valve
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
171M Euro-Sfer Series Commercial style brass ball valve, MNPT X FNPT threaded, full port.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to +366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, chrome plated brass ball.
PTFE seats, seals, and thrust washer.
Adjustable stem packing.
100% electronically tested in the open and closed position at 80 psi.
Not to be used for drinking water.
Valve to be used in fully open or fully closed position.
Model Details
171M: LEVER HANDLE - size 1/4” to 1”.
171MCR: CHROME PLATED - size 1/4” to 1”.
171MCRL: CHROME PLATED WITH LOCKING HANDLE - sizes 1/4” to 1”.
171M Euro-Sfer Series Commercial Full Port Brass Ball Valve
Specifications
| Model | [171M] Lever Handle or [171MCR] Chrome-Plated or [171MCRL] Chrome-Plated w/Locking Handle |
| Valve Size | 1/4" or 3/8" or 1/2" or 3/4" or 1" or 1/4"⠀ or 3/8"⠀ or 1/2"⠀ or 3/4"⠀ or 1"⠀ or 1/4" ⠀ or 3/8" ⠀ or 1/2" ⠀ or 3/4" ⠀ or 1" ⠀ |
