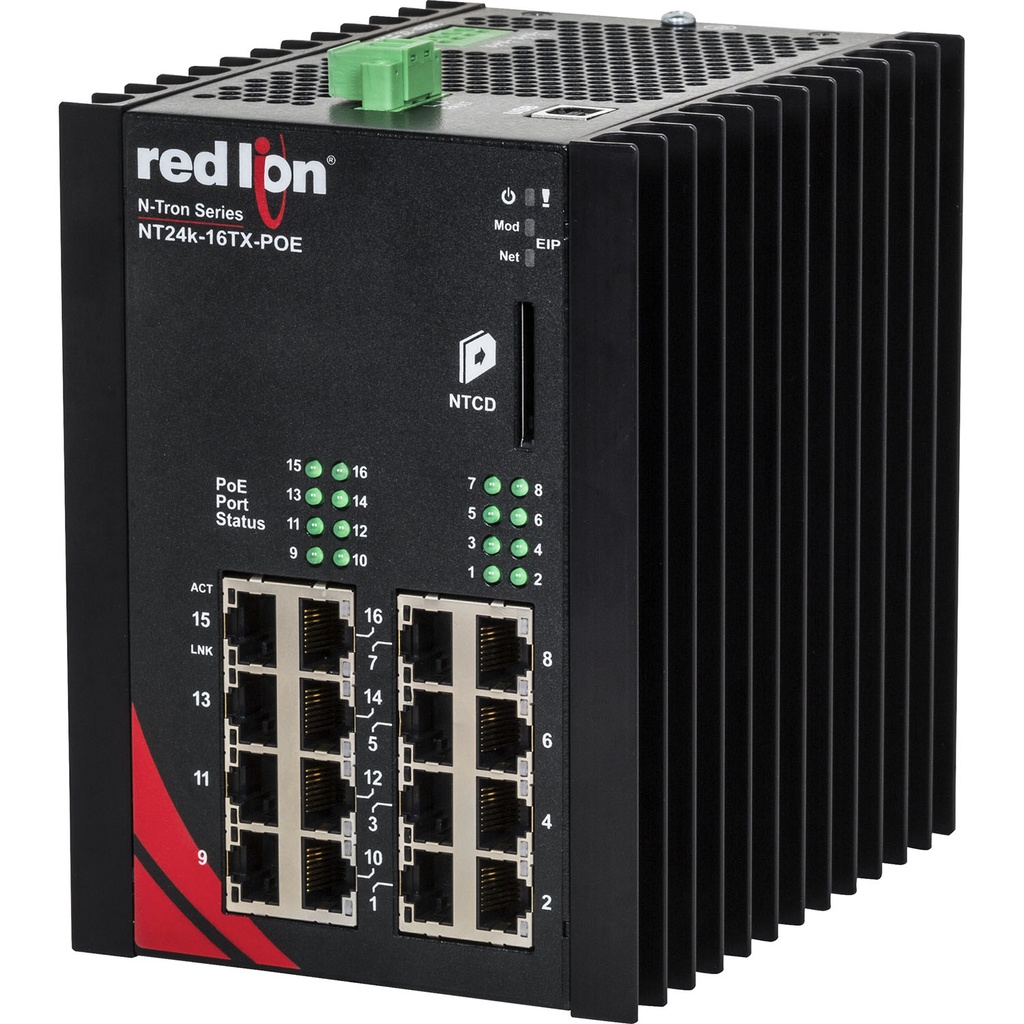

NT24k Series, N-Tron NT24k-16TX-POE Gigabit PoE+ Managed Ethernet Switch

Manufacturer: Red Lion Controls, Inc.

Mfg Product Code: NT24k-16TX-POE

Weight: 3.25 lb(s)

• 16 Port Gigabit PoE+ Managed Industrial Ethernet Switch
  • Sixteen 10/100/1000BaseTX RJ-45 Ports
  • All ports support IEEE 802.3af/at PoE+
    • 240 Watt PoE budget configurable across all 16 ports, up to 30 Watts per port
• -40°C to 80°C Operating Temperature
• ESD and Surge Protection on all Built-in Ports
• Auto Sensing 10/100/1000BaseTX, Duplex, and MDIX
• Store-and-forward Technology
• Redundant Power Input (22 - 49 VDC)
  • Power Boost Circuit to meet PoE Requirements
• Jumbo Frame Support
• 16k MAC Addresses
• Detailed Ring Map and Fault Location Charting
• USB Configuration Port
• Configurable Alarm Contact
• Compact Industrial DIN-Rail Enclosure
• Fully Managed Features:
  • SNMP v1, v2, v3 and Web Browser Management
  • SSH/SSL/HTTPS
  • 802.1x with RADIUS Remote Server Authentication
  • DHCP Server, Option 82 relay, Option 61, IP fallback
  • Port Security – MAC address based
  • Multi-Member N-Ring™ Technology with ~30ms Healing
  • N-Link™ Redundant Ring Technology
  • N-View™ Monitoring Technology
  • EtherNet/IP™ CIP™ Messaging
  • 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
  • Web configuration
  • IGMP Auto Configuration
  • 802.1Q tag VLAN and Port VLAN
  • 802.1p QoS and Port QoS
  • SNTP
  • Event Log/Syslog
  • Port Trunking
  • Port Mirroring
  • 802.1d, 802.1w, 802.1D RSTP
  • Local Port IP Addressing

PTP version also available
