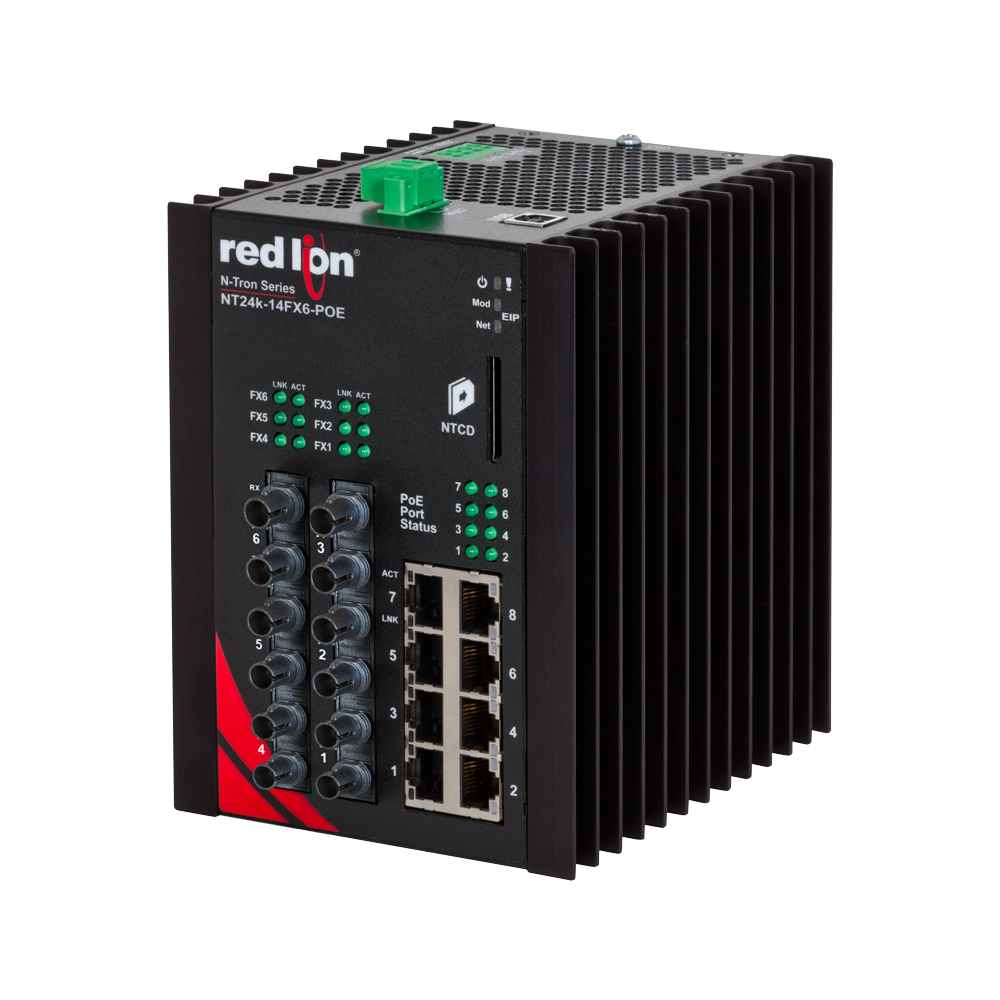

NT24k PoE Series, 14-Port, N-Tron NT24k®-14FXE6-POE Managed PoE+ Gigabit Ethernet Switch, ST 80km
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: NT24k-14FXE6-ST-80-POE
Weight: 3.35 lb(s)
Red Lion's N-Tron® series NT24k® platform offers a wide array of port configurations, media types and managed Power over Ethernet Plus (PoE+) models that include Fast Ethernet, Gigabit copper and fiber options. All NT24k PoE switches are plug-and-play installable, featuring IGMP auto-configuration, media/port auto-detection and simple ring configuration, making the NT24k platform one of the easiest to deploy managed Ethernet switches in the industry. Housed in rugged hardened enclosures, the NT24k PoE Ethernet switches feature extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology.
Features
- 14 Port Gigabit Managed Industrial Ethernet Switch
- Eight 10/100/1000BaseTX RJ-45 Ports
- Six 100BaseFX Singlemode 80km Fiber Ports with ST Connectors
- All copper ports support IEEE 802.3af/at PoE+
- -40°C to 80°C Operating Temperature
- ESD and Surge Protection on all Built-in Ports
- Auto Sensing 10/100/1000BaseTX, Duplex, and MDIX
- Store-and-forward Technology
- Redundant Power Input (22 - 49 VDC)
- Jumbo Frame Support
- 16k MAC Addresses
- Detailed Ring Map and Fault Location Charting
- USB Configuration Port
- Configurable Alarm Contact
- Compact Industrial DIN-Rail Enclosure
- Fully Managed Features:
- SNMP v1, v2, v3 and Web Browser Management
- SSH/SSL/HTTPS
- 802.1x with RADIUS Remote Server Authentication
- DHCP Server, Option 82 relay, Option 61, IP fallback
- Port Security – MAC address based
- Multi-Member N-Ring™ Technology with ~30ms Healing
- N-Link™ Redundant Ring Technology
- N-View™ Monitoring Technology
- EtherNet/IP™ CIP™ Messaging
- 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
- Web configuration
- IGMP Auto Configuration
- 802.1Q tag VLAN and Port VLAN
- 802.1p QoS and Port QoS
- SNTP
- Event Log/Syslog
- Port Trunking
- Port Mirroring
- 802.1d, 802.1w, 802.1D RSTP
- Local Port IP Addressing
NT24k PoE Series, 14-Port, N-Tron NT24k®-14FXE6-POE Managed PoE+ Gigabit Ethernet Switch, ST 80km
Brand:Red Lion
Manufacturer Product Family:NT24k PoE Series Switches
Min Operating Temperature:-40 °C
Max Operating Temperature:80 °C
Mounting Options:DIN Rail
Case Material:Metal
Ethernet Connector Type:ST
No. Ports:14
100 Fiber Ports:6
10/100/1000 Ports:8/8 PoE+
Switch Type:PoE Switch
Standards:IEEE802.3at
Specifications
| Brand | Red Lion |
| Manufacturer Product Family | NT24k PoE Series Switches |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 80 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Ethernet Connector Type | ST |
| No. Ports | 14 |
| 100 Fiber Ports | 6 |
| 10/100/1000 Ports | 8/8 PoE+ |
| Switch Type | PoE Switch |
| Standards | IEEE802.3at |
