Representative photo. Please check item description for details.

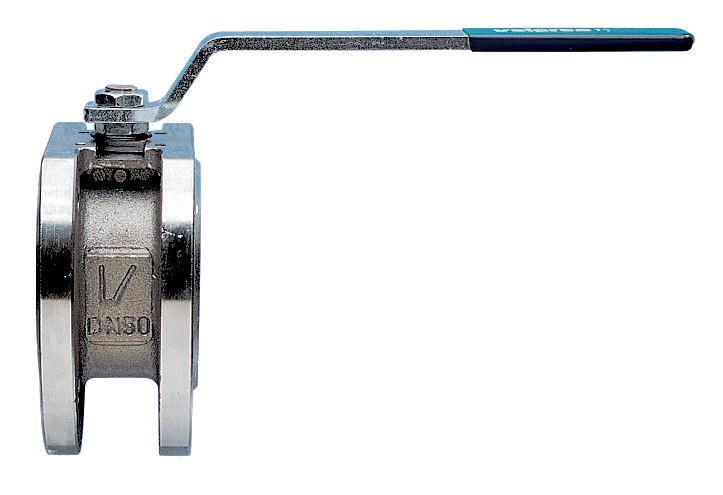

720370-V36-V6-V9 Wafer V-Ball Series Stainless Steel Flanged Wafer ANSI 150 30-60° V-ball valve
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
720370-V36-V6-V9 Wafer V-Ball Series stainless steel ANSI class 150 flanged V-ball valve 30-60, 60, 90 degrees V ports.
Features
- Temperature range -4°F to 406°F.
- Blow-out proof stem, Antistatic Device.
- RPTFE seats, packing and thrust washer.
- Thermal relief hole in the ball.
- Space saving design.
- 100% tested.
- TUV T.A. Luft approved.
- ANSI B16.34 design.
- ISO 5211 mounting pad and double “D" stem.
720370-V36-V6-V9 Wafer V-Ball Series Stainless Steel Flanged Wafer ANSI 150 30-60° V-ball valve
Specifications
| Model | [720370V36] 30-60° or [720370V6] 60° or [720370V9] 90° |
| Valve Size | 1/2" or 3/4" or 1" or 1-1/2" or 2" or 3" or 4" or 6" |
