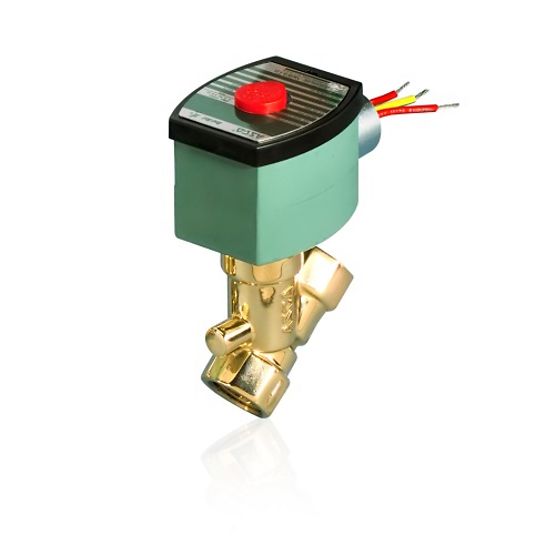

030 Series NO Low-Pressure Solenoid Valve
Manufacturer: Asco LP
Mfg Product Code:
The ASCO Series 030, also known as 8030, is a direct-acting low-pressure solenoid valve with up to 15 psi (1 Bar) maximum differential. Valves available in brass or stainless steel, normally open or normally closed and pipe sizes 3/8-inch thru 3/4. They are widely used for dispensing, collating, vacuum holding, tank draining and gas shutoff applications. The normally open version is well suited for gas venting.
Features
- Ideal for low pressure general service and vacuum applications
- Brass constructions available for fuel gas service in commercial and industrial gas burners
- Gas shutoff model has 2-way normally closed operation
- Gas vent model has 2-way normally open operation
- Most constructions mountable in any position for convenient installation
030 Series NO Low-Pressure Solenoid Valve
Valve Brand:Asco
Pipe Size:3/8in, 1/2in, 3/4in
Actuation:Solenoid - Direct Acting
Body Material:Brass
Core and Plugnut:430F SS
Core Springs:302 SS
Core Tube:305 SS
Disc Material:NBR
Enclosure Type:Watertight, Explosionproof & Watertight
Flow Factor (Cv):5.5, 1.6
Media:Air-Inert Gas, Natural Gas, Water
Min Pressure (psi):0
Max Pressure (psi):15
Min Temperature °F:32
Max Temperature °F:125
Mounting Position:Any, Vertical & Upright
Orifice:3/8in, 3/4in, 7/16in
Seal Material:NBR
Shading Coil:Copper, Silver
Stem:PA
Valve Function:2-Way Normally Open
Specifications
| 8030 Series NO Low-Pressure Sol Valve | |
|---|---|
| Product Specifications | [G070] Brass | 3/8" Pipe | 3/8" Orifice | 1.6 Cv Flow or [G071] Brass | 1/2" Pipe | 7/16" Orifice | 2.2 Cv Flow or [G082] Brass | 1/2" Pipe | 3/4" Orifice | 5 Cv Flow or [G083] Brass | 3/4" Pipe | 3/4" Orifice | 5.5 Cv Flow |
| Solenoid Option | None or [EF] Explosionproof (G070) or [EF] Explosionproof (G082, G083) or [J] Junction Box or [JB] Factory Assembled Junction Box or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G070) or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G082, G083) or [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (G070) or [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (G082, G083) or [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None or [HT] Class H - High Temperature or [KF] Class F - High Temperature - Screw Terminals or [KH] Class H - High Temperature - Screw Terminals or [SC] Class F - High Temperature - DIN Connection or [SD] Class F - Intermediate Power - DIN Connection or [SF] Class F - High Temperature - Spade Terminals or [SP] Class F - Intermediate Power - Spade Terminals or [ST] Class H - High Temperature - Spade Terminals or [SU] Class H - High Temperature - DIN Connection or [ZT] Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard or [L] Continuous Leads |
| Lead Length | Standard or 18" [D] or 72" [K] |
| Voltage | AC24/60 or AC110/50 or AC120/60 or AC120/60,110/50 or AC220/50 or AC240/60 or AC240/60,220/50 |
| Valve Features | |
|---|---|
| Valve Brand | Asco |
| Pipe Size | 3/8in, 1/2in, 3/4in |
| Actuation | Solenoid - Direct Acting |
| Body Material | Brass |
| Core and Plugnut | 430F SS |
| Core Springs | 302 SS |
| Core Tube | 305 SS |
| Disc Material | NBR |
| Enclosure Type | Watertight, Explosionproof & Watertight |
| Flow Factor (Cv) | 5.5, 1.6 |
| Media | Air-Inert Gas, Natural Gas, Water |
| Min Pressure (psi) | 0 |
| Max Pressure (psi) | 15 |
| Min Temperature °F | 32 |
| Max Temperature °F | 125 |
| Mounting Position | Any, Vertical & Upright |
| Orifice | 3/8in, 3/4in, 7/16in |
| Seal Material | NBR |
| Shading Coil | Copper, Silver |
| Stem | PA |
| Valve Function | 2-Way Normally Open |
