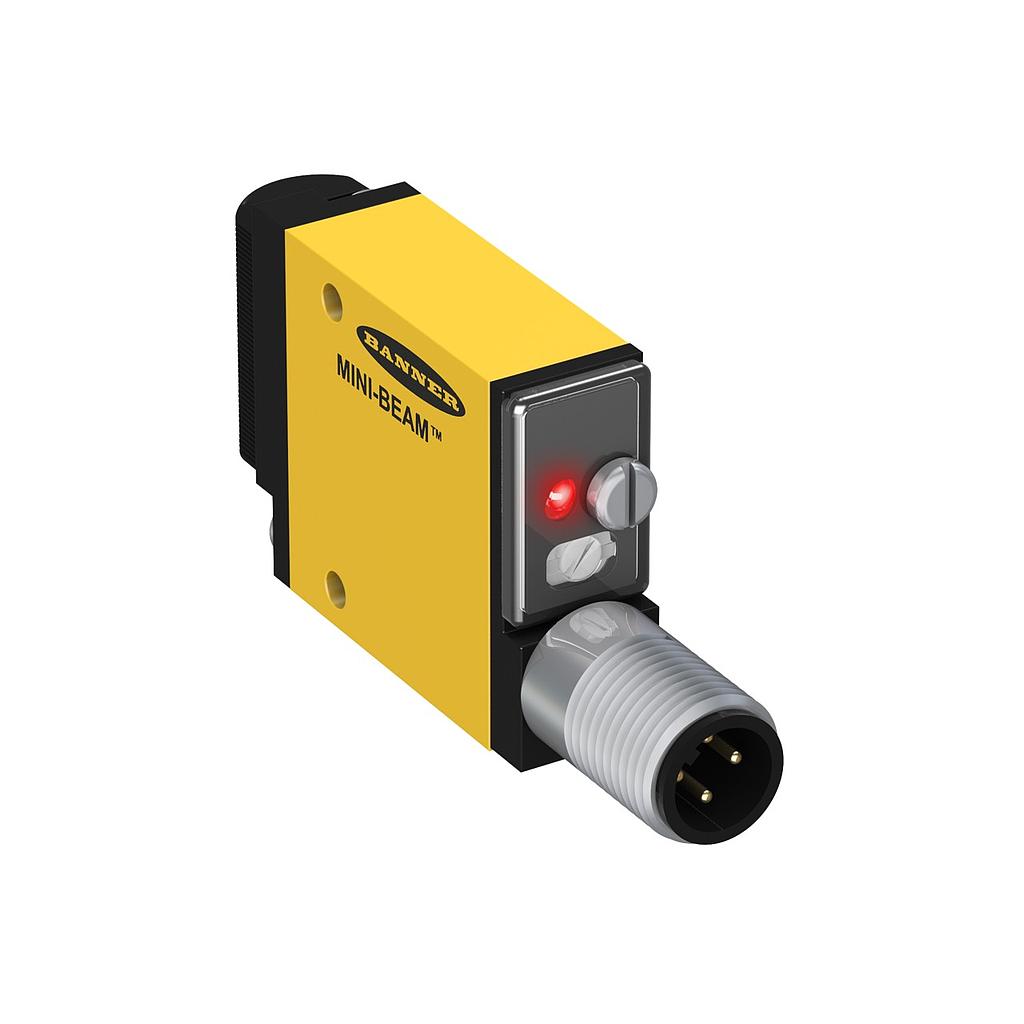

MINI-BEAM: High Speed Plastic Fiber Optic, SM312FPMHSQD
Manufacturer: Banner Engineering Corp
Mfg Product Code: 27033
Weight: 0.13 lb(s)
MINI-BEAM: High Speed Plastic Fiber Optic
Features:
- MINI-BEAM: High Speed Plastic Fiber Optic
- Range: depends on fiber used
- Input: 10-30 V dc
- Output: Bipolar: 1 NPN
- 1 PNP
- MHS Response Time =0.3 millisecond
- QD Connector
MINI-BEAM: High Speed Plastic Fiber Optic, SM312FPMHSQD
MINI-BEAM: High Speed Plastic Fiber Optic
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Feature: Bussable Power:No
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):300
Housing Style:Rectangular
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12
Number of Pins:4
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):No
Input/Output:Discrete
Min Response Time:.3 ms
Output Type (Specific):Single Discrete
Fiber Type:Plastic and Glass
Color LED - Amplifiers:Red
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Integral QD
Country of Origin:US
NEMA / UL:NEMA 1/2/3/3S/4/4X/6/12
Fiber Termination Type:Unterminated Plastic Fibers or T5 Termination
Indicator Type:Indicator LED
Specifications
Measurement Maximum | 0 |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 70 °C |
Power Supply | 10-30 VDC |
Delay at Power-Up | 100 ms |
Feature: Bussable Power | No |
Measurement Minimum | 0 |
Ingress Protection | IP67 |
Repeatability (µs) | 300 |
Housing Style | Rectangular |
Max Relative Humidity | 90% @ 50 °C |
Housing Material_ | Thermoplastic |
Feature: Hazardous Area | No |
Feature: IO Link | No |
Feature: Quick Disconnect | Yes |
Feature: Audible | No |
Quick Disconnect Type | M12 |
Number of Pins | 4 |
Adjustments | Potentiometer |
Feature: Timing (Hold/Delay) | No |
Input/Output | Discrete |
Min Response Time | .3 ms |
Output Type (Specific) | Single Discrete |
Fiber Type | Plastic and Glass |
Color LED - Amplifiers | Red |
Feature: Remote Teach | No |
Feature: Intrinsically Safe | No |
Connection Type | Integral QD |
Country of Origin | US |
NEMA / UL | NEMA 1/2/3/3S/4/4X/6/12 |
Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
Indicator Type | Indicator LED |
