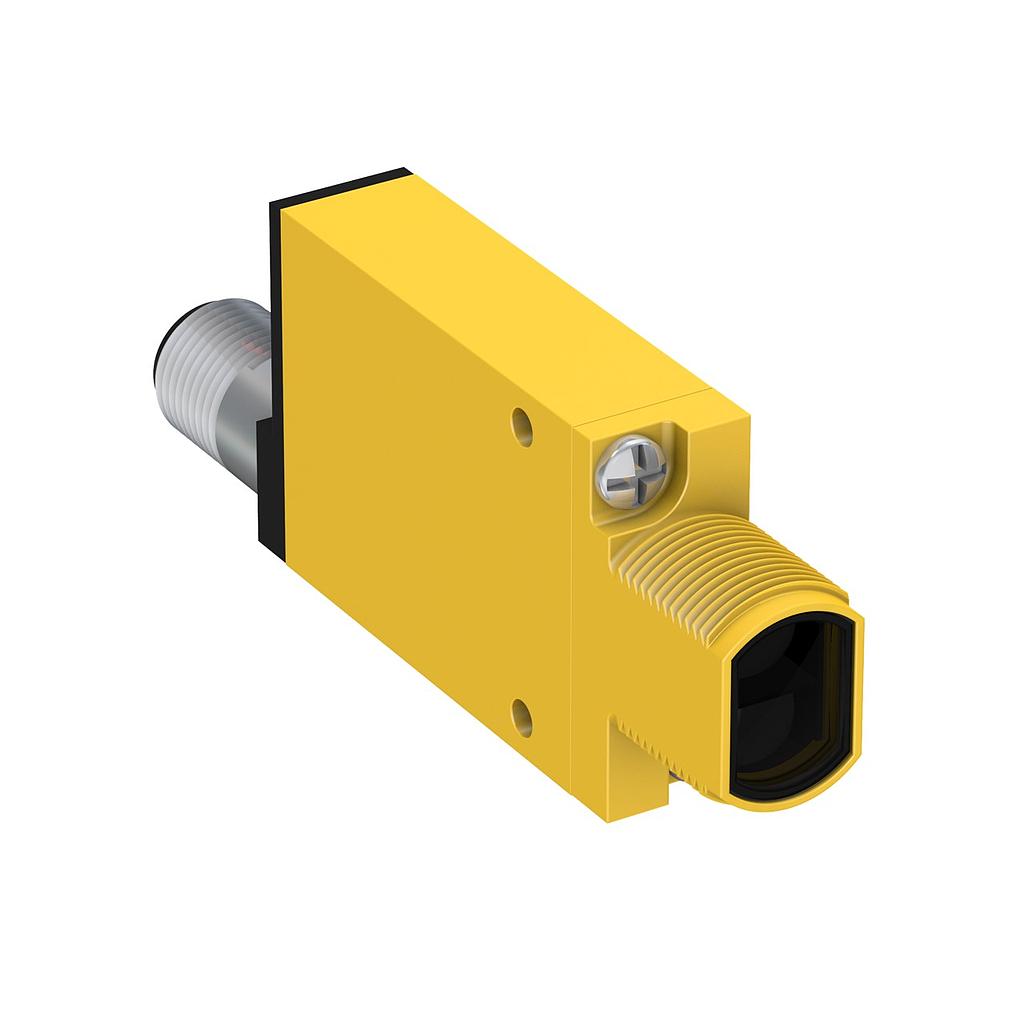

MINI-BEAM: Clear Plastic Detection System Emitter, SMA31EPDQD
Manufacturer: Banner Engineering Corp
Mfg Product Code: 26969
Weight: 0.24 lb(s)
MINI-BEAM: Clear Plastic Detection System Emitter
Features:
- MINI-BEAM: Clear Plastic Detection System Emitter
- Range: 0
- 0.3 m
- Input: 24-240 V ac
- Output: Not applicable
- No outputs
- Micro 3-pin Integral QD
MINI-BEAM: Clear Plastic Detection System Emitter, SMA31EPDQD
MINI-BEAM: Clear Plastic Detection System Emitter
Brand:Banner
Manufacturer Product Family:MINI-BEAM AC
Power:AC
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:24-240 VAC
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):300
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:650
Housing Style:Rectangular w/M18 Mount
Max Sensing Distance:300 mm
Sensing Mode (Detailed):Emitter
Sensing Mode (General):Opposed
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:1/2 in. (Micro)
Opposed Mode Emitter/Receiver:Emitter
Number of Pins:3
Adjustments:Potentiometer
Feature: Encapsulated:Yes
Barrel Diameter:18 mm
Feature: Clear Object Detection:Yes
Connection Type:Integral QD, Integral QD
Country of Origin:US
NEMA / UL:NEMA 1/2/3/3S/4/4X/6/12/13
Indicator Type:LED
Specifications
Brand | Banner |
Manufacturer Product Family | MINI-BEAM AC |
Power | AC |
Measurement Maximum | 0 |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 70 °C |
Lens Material | Acrylic |
Power Supply | 24-240 VAC |
Measurement Minimum | 0 |
Ingress Protection | IP67 |
Repeatability (µs) | 300 |
Sensing Beam | Visible Red LED |
Sensing Beam Wavelength | 650 |
Housing Style | Rectangular w/M18 Mount |
Max Sensing Distance | 300 mm |
Sensing Mode (Detailed) | Emitter |
Sensing Mode (General) | Opposed |
Max Relative Humidity | 90% @ 50 °C |
Housing Material_ | Thermoplastic |
Feature: Quick Disconnect | Yes |
Feature: Audible | No |
Quick Disconnect Type | 1/2 in. (Micro) |
Opposed Mode Emitter/Receiver | Emitter |
Number of Pins | 3 |
Adjustments | Potentiometer |
Feature: Encapsulated | Yes |
Barrel Diameter | 18 mm |
Feature: Clear Object Detection | Yes |
Connection Type | Integral QD, Integral QD |
Country of Origin | US |
NEMA / UL | NEMA 1/2/3/3S/4/4X/6/12/13 |
Indicator Type | LED |
