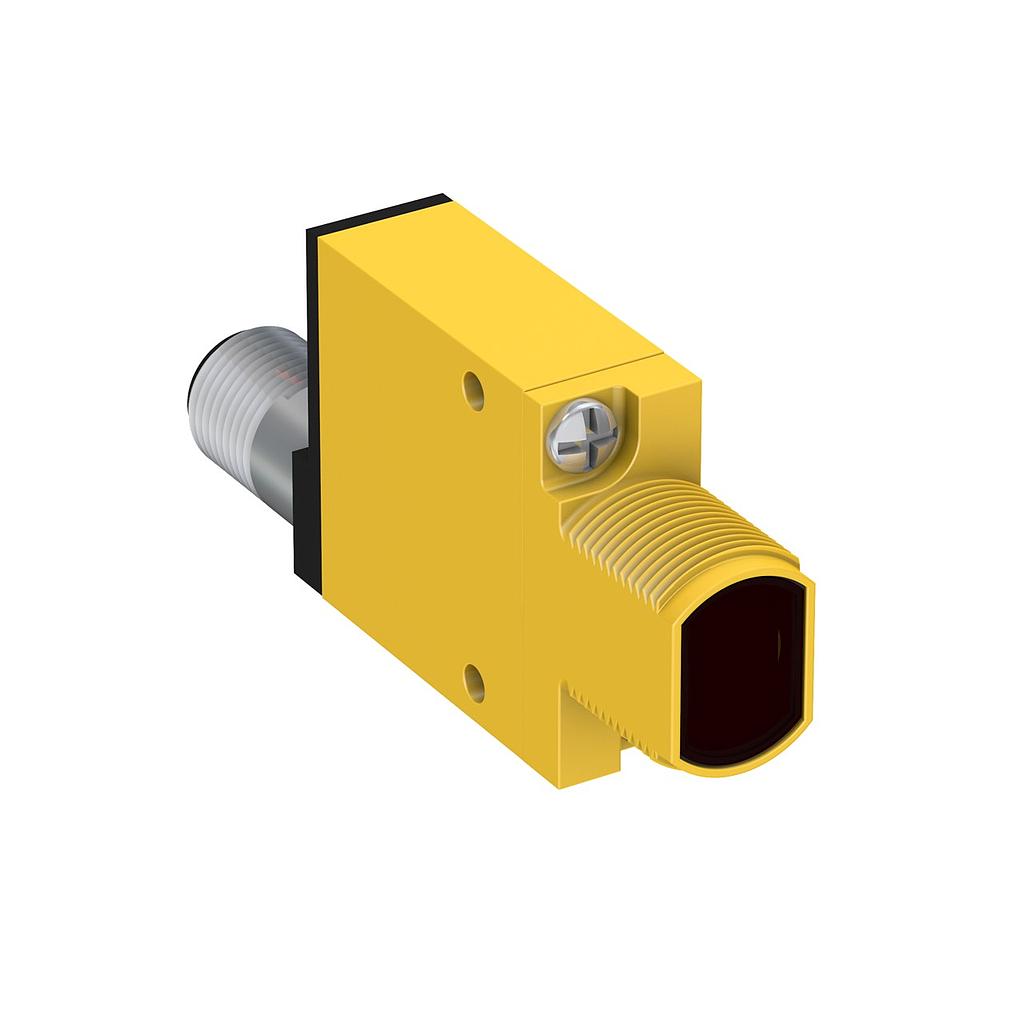

MINI-BEAM: Clear Plastic Detection Emitter, SM31EPDQD
Manufacturer: Banner Engineering Corp
Mfg Product Code: 26891
Weight: 0.22 lb(s)
MINI-BEAM: Clear Plastic Detection Emitter
Features:
- MINI-BEAM: Clear Plastic Detection Emitter
- Range: 0
- 0.3 m
- Input: 10-30 V dc
- Output: Not applicable
- No outputs
- Euro M12 4-pin Integral QD
MINI-BEAM: Clear Plastic Detection Emitter, SM31EPDQD
MINI-BEAM: Clear Plastic Detection Emitter
Brand:Banner
Manufacturer Product Family:MINI-BEAM DC
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):140
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:650
Housing Style:Rectangular w/M18 Mount
Max Sensing Distance:300 mm
Sensing Mode (Detailed):Emitter
Sensing Mode (General):Opposed
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12
Feature: Chemical Resistant:No
Opposed Mode Emitter/Receiver:Emitter
Feature: Water Detection:No
Number of Pins:4
Output Response Time:1 ms
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:Yes
Barrel Diameter:18 mm
Feature: Clear Object Detection:Yes
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Integral QD, Integral QD
Country of Origin:US
NEMA / UL:NEMA 1/2/3/3S/4/4X/6/12
Indicator Type:LED
Specifications
Brand | Banner |
Manufacturer Product Family | MINI-BEAM DC |
Measurement Maximum | 0 |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 70 °C |
Lens Material | Acrylic |
Power Supply | 10-30 VDC |
Delay at Power-Up | 100 ms |
Measurement Minimum | 0 |
Ingress Protection | IP67 |
Repeatability (µs) | 140 |
Sensing Beam | Visible Red LED |
Sensing Beam Wavelength | 650 |
Housing Style | Rectangular w/M18 Mount |
Max Sensing Distance | 300 mm |
Sensing Mode (Detailed) | Emitter |
Sensing Mode (General) | Opposed |
Max Relative Humidity | 90% @ 50 °C |
Housing Material_ | Thermoplastic |
Feature: Hazardous Area | No |
DeviceNet | No |
Feature: IO Link | No |
Feature: Quick Disconnect | Yes |
Feature: Audible | No |
Quick Disconnect Type | M12 |
Feature: Chemical Resistant | No |
Opposed Mode Emitter/Receiver | Emitter |
Feature: Water Detection | No |
Number of Pins | 4 |
Output Response Time | 1 ms |
Adjustments | Potentiometer |
Feature: Timing (Hold/Delay) | No |
Feature: Encapsulated | Yes |
Barrel Diameter | 18 mm |
Feature: Clear Object Detection | Yes |
Feature: Remote Teach | No |
Feature: Intrinsically Safe | No |
Connection Type | Integral QD, Integral QD |
Country of Origin | US |
NEMA / UL | NEMA 1/2/3/3S/4/4X/6/12 |
Indicator Type | LED |
