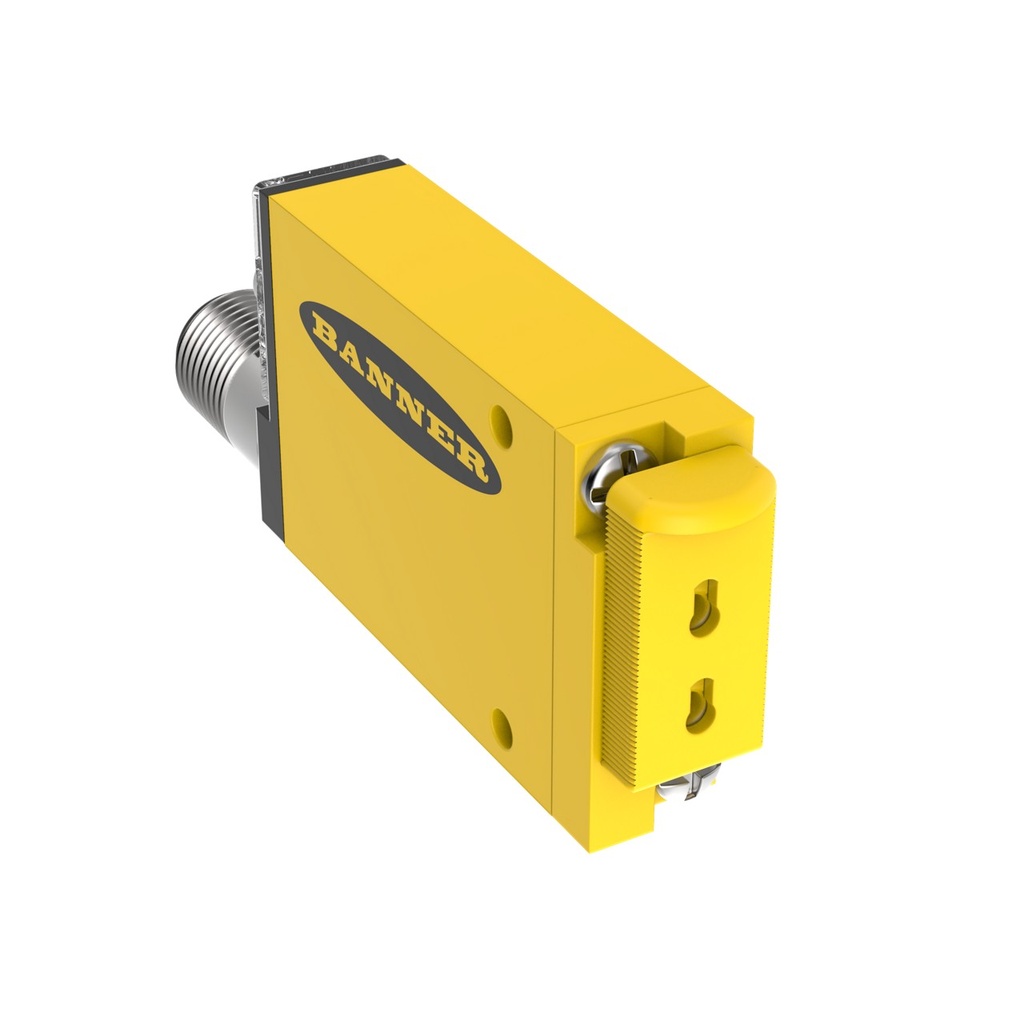

MINI-BEAM: Plastic Fiber Optic, SM2A312FPQD
Manufacturer: Banner Engineering Corp
Mfg Product Code: 26844
Weight: 0.15 lb(s)
MINI-BEAM: Plastic Fiber Optic
Features:
- MINI-BEAM: Plastic Fiber Optic
- Range: depends on fiber
- Input: 24-240 V ac
- Output: SPST Solid-state 2-Wire
- Quick-Disconnect Connector
MINI-BEAM: Plastic Fiber Optic, SM2A312FPQD
MINI-BEAM: Plastic Fiber Optic
Brand:Banner
Manufacturer Product Family:MINI-BEAM AC
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Power Supply:24-240 VAC
Delay at Power-Up:300 ms
Feature: Bussable Power:No
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):1300
Housing Style:Rectangular
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:1/2 in. (Micro)
Number of Pins:3
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):No
Input/Output:Discrete
Min Response Time:4 ms
Output Type (Specific):Single Discrete
Fiber Type:Plastic and Glass
Color LED - Amplifiers:Red
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Integral QD, Integral QD
Country of Origin:US
NEMA / UL:NEMA 1/2/3/3S/4/4X/6/12/13
Fiber Termination Type:Unterminated Plastic Fibers or T5 Termination
Indicator Type:Indicator LED
Specifications
Brand | Banner |
Manufacturer Product Family | MINI-BEAM AC |
Measurement Maximum | 0 |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 70 °C |
Power Supply | 24-240 VAC |
Delay at Power-Up | 300 ms |
Feature: Bussable Power | No |
Measurement Minimum | 0 |
Ingress Protection | IP67 |
Repeatability (µs) | 1300 |
Housing Style | Rectangular |
Max Relative Humidity | 90% @ 50 °C |
Housing Material_ | Thermoplastic |
Feature: Quick Disconnect | Yes |
Feature: Audible | No |
Quick Disconnect Type | 1/2 in. (Micro) |
Number of Pins | 3 |
Adjustments | Potentiometer |
Feature: Timing (Hold/Delay) | No |
Input/Output | Discrete |
Min Response Time | 4 ms |
Output Type (Specific) | Single Discrete |
Fiber Type | Plastic and Glass |
Color LED - Amplifiers | Red |
Feature: Remote Teach | No |
Feature: Intrinsically Safe | No |
Connection Type | Integral QD, Integral QD |
Country of Origin | US |
NEMA / UL | NEMA 1/2/3/3S/4/4X/6/12/13 |
Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
Indicator Type | Indicator LED |
